제품 상세 정보:
|
| 이름: | 다른 배터리 | 공칭 전압: | 72V |
|---|---|---|---|
| 공칭 용량: | 100AH | 차원: | 740*320*259mm |
| 애플리케이션: | 골프 카트 | 공칭 에너지: | 7360Wh |

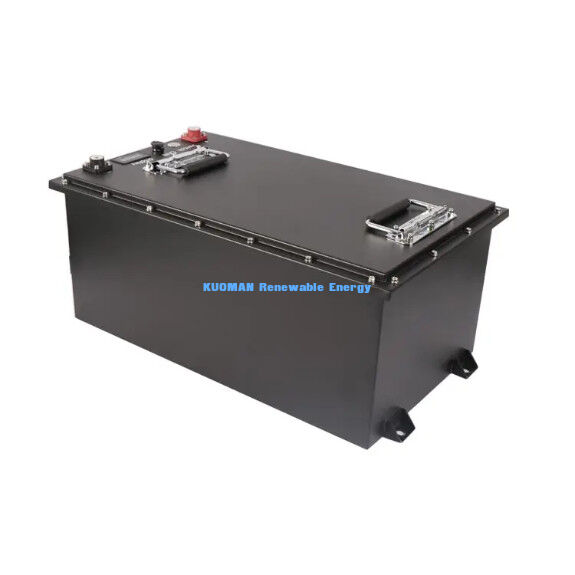

KM 72V -100Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles
KM Battery Specification:
Batteries are built with top level intelligent BMS which protects it from short-circult, over charging and discharging, over current and other dangerous situations; you have no worry about its safety and working life; 1
2V lithium batteries are built with high energy density LiFePO4 cells, of prismatic which not only saves the energy space but also weight, at least 1/3 lighter than traditional lead acid batteries; KM Energy provides the longest 10 years warranty in order to support customers in overall services.
| Data Specification | |
| Product Model | KM-72V100G |
| Nominal Voltage | 73.6V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 7360Wh |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 84V |
| Standard Charging Current | 20A |
| Max Charging Current | 100A |
| Charging Temperature | 0℃～55℃ |
| Discharging Cut-off Voltage | 57.4V |
| Discharging Current | 100A |
| Max Continous Discharging Current | 250A |
| Peak Discharging Current(3S) | 400A |
| Discharging Temperature | -20℃~60℃ |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit/etc |
| Case Material | metal/custom material |
| Terminal | fast plug-in |
| Battery Size | 740*320*259mm |
| Net Weight | 64kg |
| Communication | CAN/RS485/RS232/Bluetooth(optional) |
| Certificate | UN38.3/MSDS/Sea/Air Transport Report/CE/IEC |
| Shipping Method | by Sea/Air/Railway |
| Delivery Time | Qty within 100pcs: 5-12days |
| Note | Still more models of 50Ah, 150Ah,200Ah |
