제품 상세 정보:
|
| 최대 방전 전류: | 100A | 배터리 크기: | 442*500*140mm |
|---|---|---|---|
| 공칭 용량: | 100Ah | 공칭 전압: | 51.2V |
| 공칭 에너지: | 5120wh | 최대 충전 전류: | 100A |
| 세포 유형: | lifepo4 셀 | 충전 차단 전압: | 56.2V |
| 표준 충전 전류: | 50A | 방전용 컷오프 전압: | 45.6V |
| 피크 방전 전류: | 200A | 의사소통: | CAN/RS485/RS232/블루투스(옵션) |

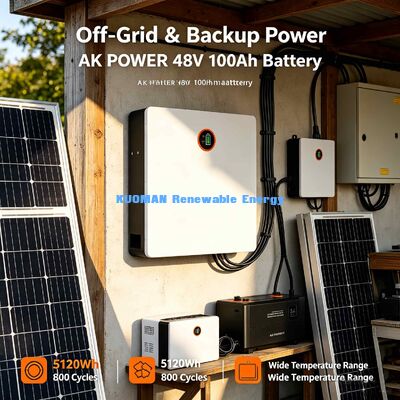

| 강조하다: | 48V lithium battery with Bluetooth,wall mount lithium battery with app,home battery storage with SOC monitor |
||
✅ Far longer cycle life vs lead acid & generic lithium batteries
✅ Slim wall design saves 60% installation space compared to floor-standing battery cabinets
✅ Traceable top-tier brand cells with full capacity guarantee
✅ All-in-one safety BMS prevents all common battery failure hazards
✅ Factory direct pricing, 10 years lithium battery manufacturing experience
✅ Customization support for housing, communication and capacity
✅ Bulk order fast lead time for solar installers & wholesale distributors
✅ Compatible with most mainstream 48V solar hybrid inverters worldwide
| Product Model | KM48V100P2 |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5120Wh |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 56.2V |
| Max Charging Current | 100A |
| Standard Charging Current | 50A |
| Discharging Cut-off Voltage | 45.6V |
| Discharging Current | 50A |
| Max Continuous Discharging Current | 100A |
| Peak Discharging Current (3S) | 200A |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit, etc. |
| Battery Size | 442×500×140mm |
| Communication | CAN/RS485/RS232/Bluetooth (optional) |
| Certificate | UN38.3/MSDS/Sea/Air Transport Report/CE/IEC |
