제품 상세 정보:
|
| 공칭 전압: | 384V | 공칭 용량: | 280ah |
|---|---|---|---|
| 공칭 에너지: | 107.52KWh | 작동 온도: | -25℃ ~ 60℃ |
| 방전율: | 0.5C | 순중량: | 1750 kg |
| 차원: | 1200×1355×2150mm | ||
| 강조하다: | 100KWh LiFePO4 energy storage cabinet,384V ESS battery for solar farm,280Ah commercial microgrid battery |
||

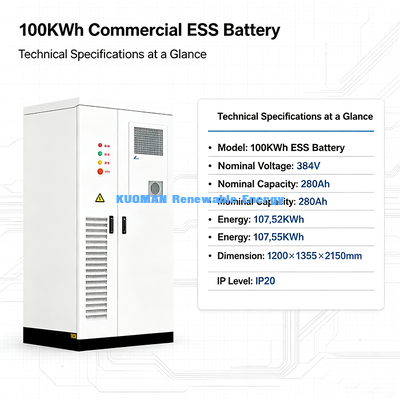

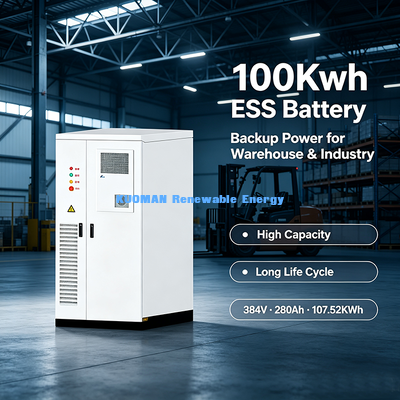

Our 100KWh all-in-one ESS energy storage system adopts safe LiFePO4 lithium iron phosphate battery cells, integrated BMS & EMS management system. This cabinet-type commercial energy storage battery delivers 107.52kWh usable energy with 50kW three-phase AC output. Designed for factories, warehouses, commercial buildings, solar energy matching, off-grid power supply and microgrid construction. The outdoor/indoor robust cabinet supports wide temperature operation, peak shaving, load shifting, backup power and renewable energy storage.
| Model | 100 kWh ESS Battery |
|---|---|
| Nominal Voltage | 384V |
| Nominal Capacity | 280Ah |
| Nominal Energy | 107.52 kWh |
| Discharge Rate | 0.5C |
| Dimensions | 1200 × 1355 × 2150 mm |
| Net Weight | 1750 kg |
| PV Input | 50 kWp (kilowatt peak) Voltage range: 200~600V |
| AC Output | 50 kW, 72 A, 154~276V, three-phase |
| Operating Temperature | -25°C to 60°C |
